Location:Product >> Gensets >> Silent type Generator Set

DATE:2019/6/24 8:40:14 HITS:823

Silent type Cummins Diesel GeneratorSilent type Cummins Diesel GeneratorSilent type Cummins Diesel GeneratorSilent type Cummins Diesel GeneratorSilent type Cummins Diesel GeneratorSilent type Cummins Diesel GeneratorSilent type Cummins Diesel GeneratorSilent type Cummins Diesel Generator

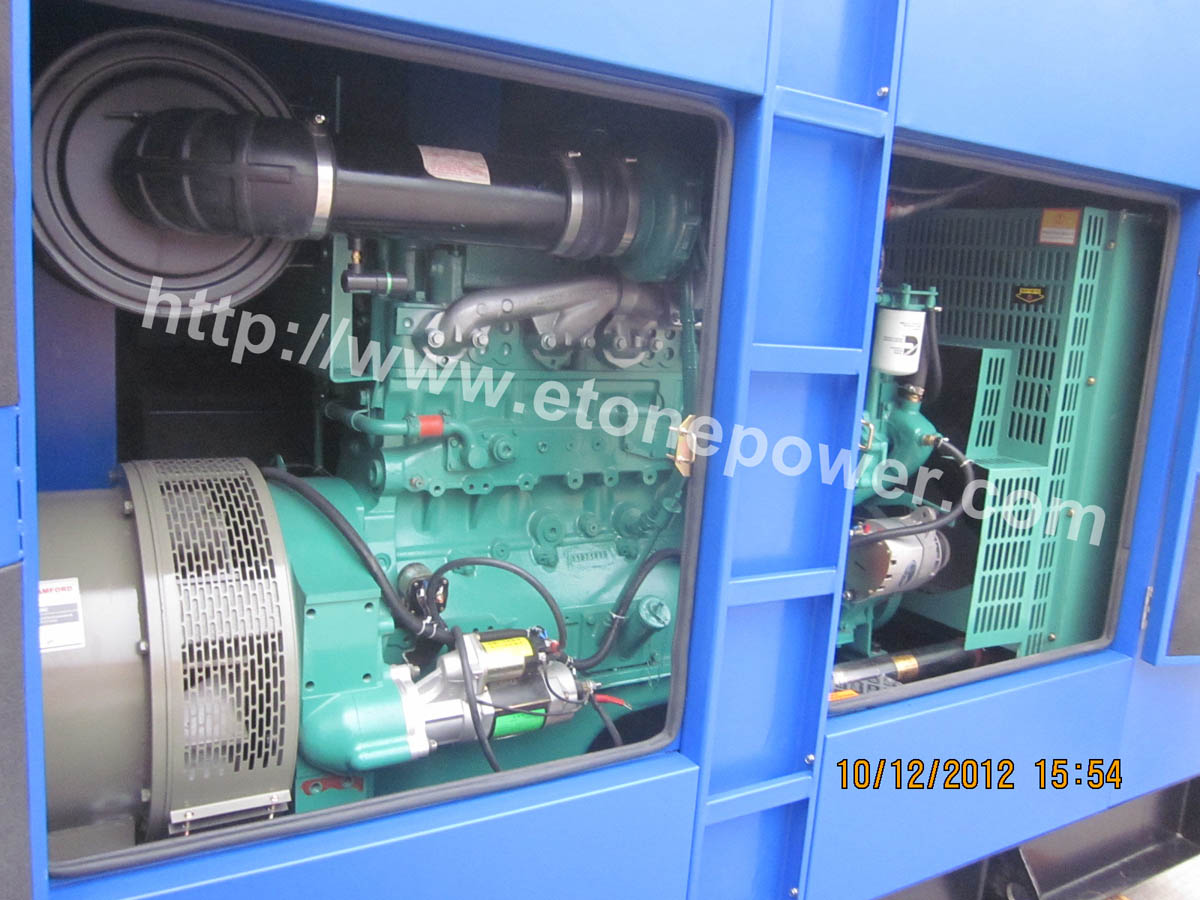

Silent type Cummins Diesel Generator

  • Product Brand:ETONE / Cummins
  • Product Model:ETCG
  • Product Description:Model NO: ETCG (25KVA~1675KVA)

Product Description

Diesel Generator Specifications: Diesel generator, diesel generator set, generator, genset/silent generator, soundproof / weatherproof canopy.
Description
Cummins Diesel Generator Set is a set of complete equipment for electrical power supply. Cummins engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Technical Specification for Standard Gen Set:
Gen-set adopt 3 phases& 4 lines output, with output 400V/230V, Frequency 50Hz/60Hz, Power factor 0.8, Neutral point to earth and protective performance complies with NEMA1 and IP22 standard.
Parameter:
Power Factor: 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4
Waveform Distortion(%): ≤ 5
Features:
High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.


Cummins Generator Set 50HZ
Item

Prime power

(KVA/KW)

Standby power

(KVA/KW)

Engine Model
Dimension(L*W*H)mm
Weight(KG)
Pdf Download

ETCG30

27 / 22

30 / 24
4B3.9-G2
1850*970*1530
980

ETCG44

50 / 40

55 / 44
4BT3.9-G2
1800*750*1200
800

ETCG55

56 / 45

63 / 50
4BTA3.9-G2
1800*750*1200
1250

ETCG70

63 / 50

70 / 55
4BTA3.9-G2
1850*970*1530
1250

ETCG100

90 / 72

100/ 80
6BT5.9-G2
2200*1030*1580
1300

ETCG110

1oo / 80

110 / 88
6BT5.9-G2
2200*1030*1580
1300

ETCG125

113 / 90
125 / 100
6BTA5.9-G2
2200*1030*1580
1400

ETCG138

125 /110

138 / 110
6BTAA5.9-G2
2320*1030*1580
1400

ETCG150

138 / 110

150 / 120
6BTAA5.9-G2
2320*1030*1580
1400

ETCG175

160 / 128
175 / 140
6CTA8.3G2
2440*980*1710
1500

ETCG206

187 / 150

206 / 164
6CTA8.3G2
2440*980*1710
1500

ETCG220

200 / 160

220 / 176
6CTAA8.3G2
2550*980*1760
1700

ETCG275

250 / 200

275 / 220
6LTAA8.9G2
2570*1140*1680
1700

ETCG313

280 / 220

313 / 250
NTA855-G1A
3315*1100*1650
3350

ETCG350

344 / 275

350 / 280
NTA855-G1B
3315x1100x1650
3350

ETCG388

450 / 360

388 / 310
NTA855-G2A
3315x1100x1650
3350

ETCG413

375 / 310
413 / 330
NTAA855-G7
3220*1260*1820
4800

ETCG450

413 / 330

450 / 360
NTAA855-G7A
3220*1260*1820
4800

ETCG500

450 / 360

500 / 400
KTA19-G3
3600x1305x1950
4900

ETCG550

500 / 400
550 / 440
KTA19-G3
3600x1305x1950
4900

ETCG625

N/A / N/A

625 / 500
KTAA19-G5
3590*1680*2200
4950
ETCG650

N/A / N/A

650 / 520
KTAA19-G6
3720*1680*2200
4950
ETCG688
N/A / N/A
688 / 550
KTAA19G6A
3720*1680*2200
4950
ETCG715

650 / 520

715 / 572
KT38-G
4350x1710x2300
6650
ETCG825

1000 / 800

825 / 660
KTA38-G2
4440*1750*2430
7850
ETCG1000

900 / 720

1000 / 800
KTA38-G2A
4440*1750*2430
7850
ETCG1100

1000 / 800

1100 / 800
KTA38-G5
4380*2080*2570
7800
ETCG1250

N/A / N/A

1250 / 1000
KTA38-G9
4660x2090x2320
7900
ETCG1375
1250 / 1000
1375 / 1100
KTA50-G3
5620x2060x2330
9800
ETCG1675
1500 / 1000
1675 / 1340
KTA50-GS8
5800x2090x2400
10000

Cummins Generator Set 60HZ
Item

Prime power

(KVA/KW)

Standby power

(KVA/KW)

Engine Model
Dimension(L*W*H)mm
Weight(KG)
Pdf Download

ETCG35

31 / 25

35 / 28
4B3.9-G2
1750*970*1530
980

ETCG55

50 / 40

55 / 44
4BT3.9-G2
1780*970*1530
1000

ETCG75

68 / 54

75 / 60
4BTA3.9-G2
1850*970*1530
1250

ETCG110

100/ 80

110/ 88
6BT5.9-G1
2200*1030*1580
1300

ETCG125

113 / 90

125 / 100
6BT5.9-G2
2200*1030*1580
1300

ETCG143

130 / 104

143 / 114
6BTA5.9-G2
2200*1030*1580
1400

ETCG163

148 / 118
163 / 130
6BTAA5.9-G2
2320*1030*1580
1400

ETCG185

168 / 134

185 / 148
6CTA8.3G2
2440*980*1710
1500

ETCG200

181/145

200/160
6CTA8.3G2
2440*980*1710
1500

ETCG220

200 / 160

220 / 176
6CTA8.3G2
2440*980*1710
1500

ETCG240

220 / 175
240 / 194
6CTAA8.3G2
2550*980*1760
1700

ETCG300

275 / 220

300 / 240
6LTAA8.9G2
2570*1140*1680
2250

ETCG335

300 / 240

335 / 267
NTA855-G1
3315x1100x1650
2750

ETCG388

350 / 280

388 / 310
NTA855-G1B
3315x1100x1650
3350

ETCG440

400 / 320

440 / 352
NTA855-G3
3220*1260*1820
4800

ETCG500

455 / 360

500 / 400
KTA19-G2
3600x1305x1950
4900

ETCG530

481/ 382

530 / 424
KTA19-G3
3600x1305x1950
4900

ETCG625

560 / 450
625 / 500
KTA19-G4
3600x1305x1950
4900

ETCG725

N/A / N/A

725 / 580
KTAA19-G5
3720*1680*2200
4950

ETCG750

N/A / N/A

750 / 600
KTAA19G6A
3720*1680*2200
4950

ETCG850

775 / 620
850 / 680
KT38-G
4440*1750*2430
7850

ETCG1000

910 / 725

1000 / 800
KTA38-G2
4440*1750*2430
7850
ETCG1250

1136 / 910

1250 / 1000
KTA38-G4
4380*2080*2570
7800
ETCG1500
1370 / 1100
1500 / 1200
KTA50-G3
5620x2060x2330
9800
