Containerized Generator Product details

Containerized Generator Product details

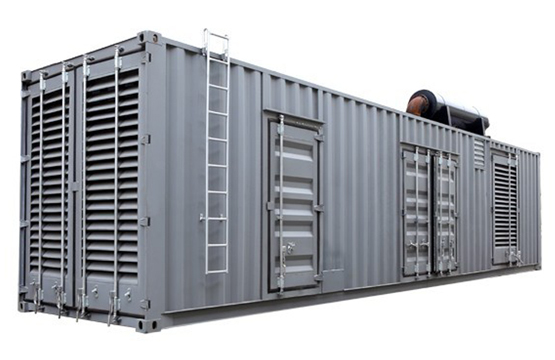

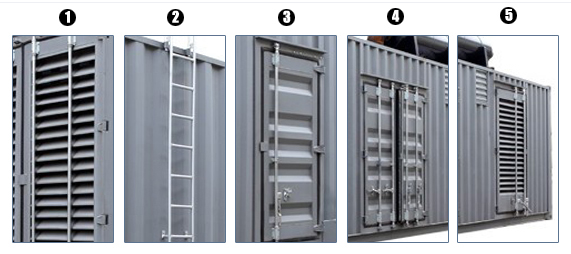

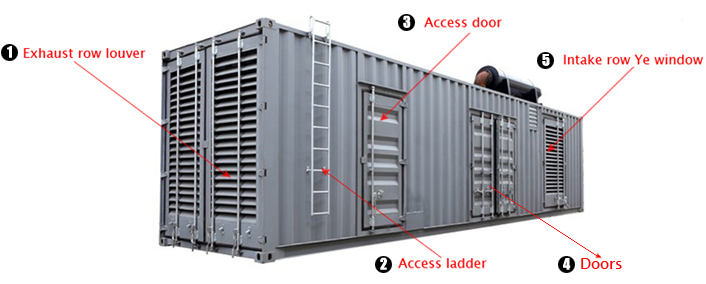

» The generating set will be enclosed in an acoustically treated Weatherproof ＆Sound Attenuated Canopy, with hinged lockable side access doors and roof-mounted silencer. The enclosure for each generator set will be manufactured from a new, standard size 10 FT ISO steel container, with standard forklift slots and four corners standard load locking/lifting fittings. The container floor will be clad in ribbed aluminium sheet, and the walls and ceiling shall incorporate sound –dampening and fireproof insulating materials
» The acoustic attenuation and special silencers will provide an overall sound lever of 70dB (A) at a distance of 7m from the enclosure. Suitably attenuated inlet and outlet louvers are included complete with mesh. The container will be outfitted with:

» 1.Ceiling mounted Fluorescent Light fittings providing

      sufficient light on both sides of the generator.

» 2.A ventilated-to-outside diesel fuel Day-Tank fitted with internal water heating system .

» 3.Outside, flush-mounted, easily accessible (for refueling), lockable fuel-tank filler.

» 4.Emergency Stop Button mounted on the outside wall mounted near the personnel entrance.

» 5.Two, double 110V/230V standard wall mounted socket outlets, on either set of the generator.

» 6.Suitable outlet for distribution cable, that when not in use is covered by a bolt-on cover accessible from inside only.

» 7.The generating set is earth-connected to the container, and two(2) heavy-duty earthconnections are provided (one on each side).

1. Container with CSC certificate which is conformed to international safety agreement of container. The complete containerized genset can be shipped directly for sea transportation which saves freight cost.

2. The crossbeam of container is made of square steel tube (different from common container) to enhance mechanical strength of container and endure higher shock of impulsive-load from genset.

3. All the hinges, locks and screws are stainless steel. Anti wave and rainproof accessories are fixed inside of the container.

4. Side doors are fixed in both sides of container for easy maintenance and inspection. And one ladder is installed in one side.

5. Container can be opened from both front and back which is easy for daily maintenance and inspection of alternator and engine radiator. The open genset also can be easily removed from front or back side for overhaul.

6. Two flameproof lights are fixed inside of container, and one in control panel for easy maintenance and inspection.

7. Leak fluid collection system for engine is designed at the bottom of container to avoid the environment pollution.

8. Control panel and switch cabinet are installed on the same side of the container for easy operating and wires connecting.

9. PMG (Permanent Magnet Generator) is fixed as standard which improves the starting capability and boosts anti interference of harmonics distortion of alternator.

10. Fuel tank, pipes, oil drain and muffler with special design are well appreciated by customers.

11. High performance soundproof materials are installed inside of container which are flameproof, durable and especially efficient in noise reduction.
