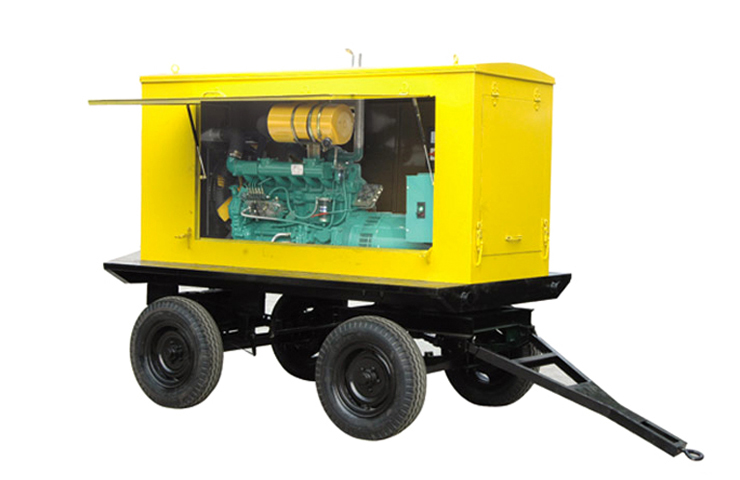

Trailer mounted Generator 75kVA

  • Product Brand:ETONE(optional)
  • Product Model:ET75kVA
  • Product Description:

Product Description

1.The specifications of Trailer Mounted generator(1kVA-2500kVA) 50/60hz

AC 3 phase, 4 wires
1500/1800rmp
p.f.: 0.8 lagging
Voltage regular: AVR
Linking: Coupling flexible linking

2.Diesel Engine:Shangchai/Cummins/Volvo (optional)

Type: four strokes, water-cooled,turbo charged
Rated speed:1800/1500rmp
Startup: electrically/ automatically
Startup voltage: DC 24V
Type of governer:mechanically

3.Alternator: Etone/Marathon/Stamford(optional)

Type: brushless
Bearing: single or double bearings
Short circuit protection: Air switch
Damping windings: full damping
Safety Guard Grade: IP22
Insulation grade: H

Trailer Mounted generator (1kVA-2500kVA)

We can provide various brands for you to choose.

(1) generator set, generator sets with Cummins, Perkins, Deutz, Doosan Daewoo and other well-known brands in the entire unit.
(2)Traction: with movable hooks, 360-degree turntable steering and flexible to ensure the safety of the traveling.
(3)brake: with optional air brake interface and hand-brake system at the same time to ensure the safety of driving.
(4)support: In order to ensure the stability of the power car operation, with four mechanical or hydraulic support device.
(5)doors and windows; the front hopper windows, rear outside door, on both sides of a door for operator access.
(6) soundproof; power the car's trunk, doors, and all decorated with a double, and equipped with sound-absorbing panels silencer; exhaust pipe wrapped in cotton insulation, the lowest noise control in less than 75dB (A).

(7) trunk size; trunk size according to the size specifications, operators can walk around, easy to operate and maintain.
(8)the external appearance: paint with high temperature paint, custom colors can be owners, the exhaust pipe on exhaust, ensure the exhaust flow.
