STANADARD
Newage Stamford industrial generators meet the requirements of BS EN 60034 and the relevant sections
of other national and international standards such as BS5000, VDE 0530, NEMA MG1-32, IEC60034, CSA C22.2-100, AS1359.
Other standards and certifications can be considered on request.

PRODUCT

The power range of STAMFORD alternator has covered 7KVA- 2200KVA. The alternator can couple to all the Power Engine. Stamford
has been the first option of Cummins, Perkins, Volvo, MTU. Deutz, Caterpiller etc. ?
The series alternator include BC16、BC18、UC224、UC274、HC4、HC5、LV6、HC7. Choose Stamford, you can enjoy worldwide
parts service and global service.

 DESCRIPTION

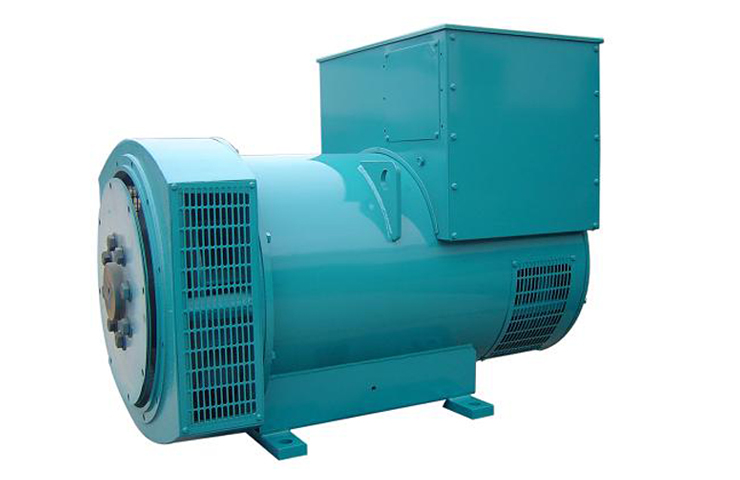

The STAMFORD PI range of synchronous ac generators are brushless with a rotating field. They are separately excited by the
STAMFORD Permanent Magnet Generator (PMG). This is a shaft mounted,
high frequency, pilot exciter which provides a constant supply of clean power via the Automatic Voltage Regulator (AVR) to the main
exciter. The main exciter output is fed to the main rotor, through a
full wave bridge rectifier, protected by surge Suppression
