Location:Product >> Gensets >> Gas Generator

DATE:2019/6/24 15:56:21 HITS:716

GE's Waukesha* 275GL* Gas GensetsGE's Waukesha* 275GL* Gas GensetsGE's Waukesha* 275GL* Gas GensetsGE's Waukesha* 275GL* Gas Gensets

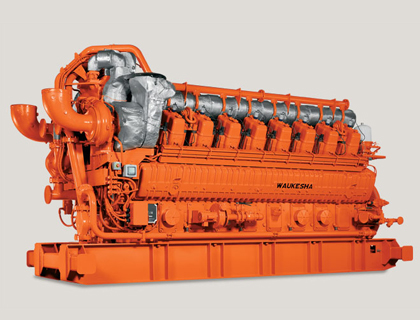

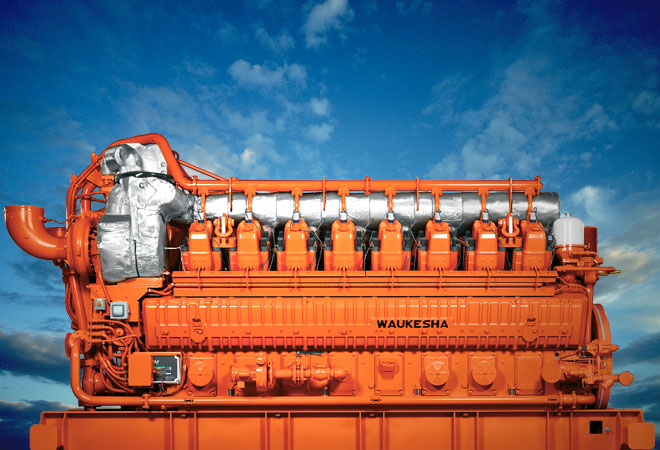

GE's Waukesha* 275GL* Gas Gensets

  • Product Brand:
  • Product Model:
  • Product Description:

Representing an advanced generation of high horsepower engines, the 275GL+ excels in all evaluation criteria. A unique combination of robust construction and innovative technology, the 275GL+ lean burn engine delivers excellence in fuel flexibility, efficiency, power output and emissions performance for gas compression, mechanical drive and oilfield power applications.

■ Features & Benefits

  • ● Maintains full power on a wide range of fuels
  • ● Low greenhouse gas emissions, small carbon footprint
  • ● Full power up to 4000 feet (1219.2 meters) altitude
  • ● Reliable power maximizes profits
  • ● Proven ESM control system
  •  Ease of use simplifies packaging and service
■ Application

  • ● GE’s Waukesha 275GL+ is available in both 12- and 16-cylinder configurations offered as either a bare engine or custom-packaged Waukesha Enginator generator set for a variety of applications including gas compression, mechanical pump drive and oilfield power generation.
    ● For tough gas compression applications, from gas gathering to storage and transmission, the 275GL+ excels in every evaluation criteria with “No Trade-Offs”. There is no choosing between power and emissions or between fuel efficiency and fuel flexibility.
    ● The 275GL+ can also be applied in mechanical drive pump, or constant torque applications where there are wide operating speed requirements.
    ● Offered as either a bare engine or custom built Enginator generator set for oilfield power, the 275GL+ is hot fuel tolerant, has high altitude capabilities without derate and provides reliable, continuous operation.
Specifications
Configuration
Bore (mm)
Stroke (mm)
Displacement/
cylinder (lit)
Speed (rpm)
Mean piston speed (m/s)
Scope of supply
Applicable gas types
Engine type
V 54°
275
300
17.8
750 – 1,000 rpm
10.0 (1,000 rpm)
Bare engine, Enginator
Natural gas, flare gas, propane
12V275GL+, 16V275GL+
■ Design

  • ● Robust construction and innovative technology have produced essential enhancements to the control, combustion, air handling, exhaust and lubrication systems and design improvements now offer simplified packaging and serviceability.
    ● The ESM control system integrates all engine control functions including air/fuel ratio control, turbocharger controls, ignition timing, knock detection and engine diagnostics. All controls are engine mounted and pre-tested at the factory.
    ● Power uprates, efficiency improvements and emission reductions are the results of recent enhancements to the combustion system.
    ● Optimized twin turbochargers provide improved efficiency, high altitude capability and improved turn-down. Front mounted turbos allow straight forward and uncluttered installation.
    ● Pre-molded hard shell metal foil technology provides improved serviceability and durability.
    ● Complete engine mounted lubrication system includes prelube pump, spin on filters (common with VHP products), centrifugal filtration system and oil cooler
    ● Packaging has been simplified with convenient connection points and the use of front-end turbos.
■ On-site Capabilities Fuel Flexibility:

Fuel Flexibility:

  • ● Waukesha’s 275GL+ was built to maintain full power on a wide range of fuels, without the added cost of fuel treatment. The 275GL+ can run on fuel with up to 1000 ppm H2S without treatment and operates on a wide range of fuels from 600 Btu/ft3 to 2300 Btu/ft3.

Altitude:

  • ● The 275GL+ was also built to work effectively in challenging locations, delivering full power up to 4000 feet ( 1219.2 meters) making it an ideal choice for high-altitude applications.
