Both of the mast lifting and extention are electrical operation,
The safe and reliable "DC electrical line actuator" can finish all the operation without running the generator, and its self-locking ball screw can keep the mast at any position for a long time;
The electrical adjusting of light bar tilt is option:it can be adjusted from horizontal to vertical;
The lights can be adjusted manually at the non-lifting position ,
each light can be rotated 360°and tilted 90°;
The mast can be rotated 330°manually;
The galvanized mast and the powder coated canopy suit the outdoor environment for a long time;
The AL-KO Hexagon rubber suspension system is suitable for variously rough road, and its maintenance-free axis’s service life will be at least 20 years;
The excellent-quality and multi-fault protection generator with the low-emission diesel engine and brushless alternator can power all of the lights stably and continuously;
The simple and clear graphic indication and operating mark on the control panel;
Four 5000lb individual stalizer legs can support the tower stably and reliably, even on rough ground ,and ensure the lighting tower can also work in the 8 grade windy weather;
All the outdoor electrical plugs and sockets are at least IP44 protective class.
Please call us on +86-13922523585 or email Sam@etonepower.com and our specialist team would be delighted to advise you on the best lighting for your site.
Standard Equipment

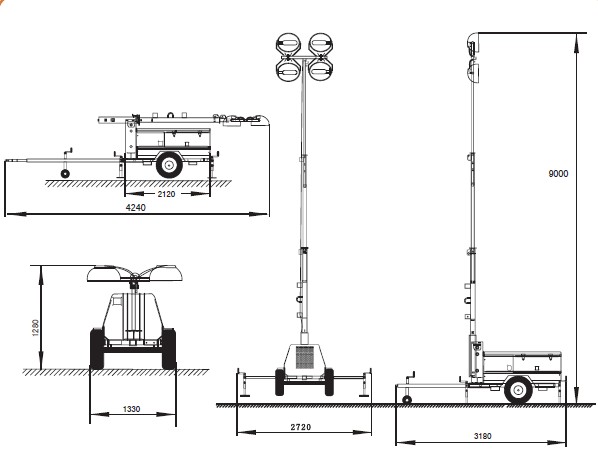

4ETN6000
Length (mm)
4240
Width (mm)
1330
Height (mm)
1280
Mast Height(m,Fully Extended)
9
Weight (gross)
1030kg
Engine model
D1105-BG
(Kubota)
3TNV76
(Yanmar)
403D-11G
(Perkins)
385
（Lester）
Frequency(Hz)
50
60
50
60
50
60
50
60
Speed(rpm)
1500
1800
1500
1800
1500
1800
1500
1800
Continued Power(kVA)
9.5
10.5
9.5
11.5
9
10
9
11
Number of Cylinders
3
Diesel Engine Characters
4-cycle, In line, Watercooled Diesel
Combustion Type
Precombustion
Direct Injection
Indirect Injection
Direct Injection
Engine Aspiration
Natural
Emission Level
Stage3
Tier4
Stage3
Tier4
Stage2
Tier4
N.A.
Tier4
Alternator
Brushless & Single phase
Rating Voltage (V)
230
Alternator Insulation
class H
Fuel Tank Capacity
95 liters (50US Gallons)
Fuel Tank Operating Hours
80 hours
Type of Lights
Oval metal halide floodlight
Number & Power of Lights
4×1000W
Mast Lifting & Extension
DC Electric operation
Mast Rotation
330° Manual operation
Light Bar Tilt
Manual operation
Stabilizing Legs
Manual operation
Trailer Suspension System
Hexagonal rubber suspension
Hitch
Ball or O ring
Output Sockets
1PCS (230,10A)
Acoustic Pressure
70dB(A) at 7 meters away
Max. load quantity in
a 20' container (sets)
16
