Light Tower - EVL5000Light Tower - EVL5000Light Tower - EVL5000

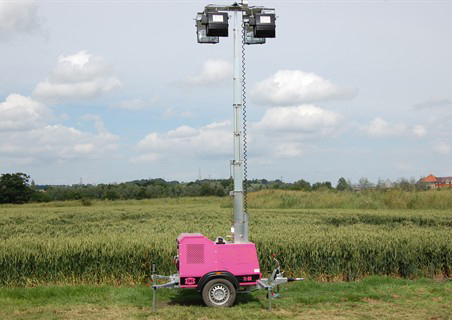

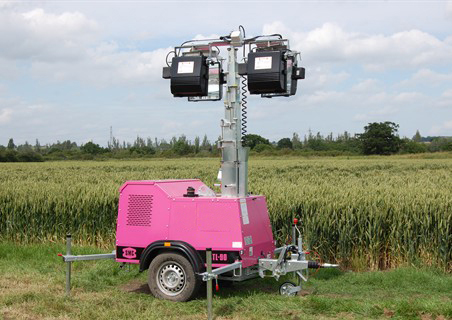

Light Tower - EVL5000

  • Product Brand:
  • Product Model:
  • Product Description:

With a vertical 9m hydraulic mast, which rotates 360 degrees and erects in only 12 seconds, the TL-90 tower light is suitable for lighting both industrial and event sites. The TL-90 is a super silent lighting tower, creating 60db of noise at approx 7 metres, plus with four 1,000 watt metal halide lamps it provides high intensity light to a wide work area.

The compact design ensures that the tower can be easily transported in bulk, with each unit, once in the set-up position, measuring length 2.5m x width 1.32m x height 2.1m. It has road lights and reflectors meaning it can be towed on the road too. Setting-up the TL-90 Tower Light is straight forward and easy with the fully automated mast erection and, once in position and fully extended, only measures length 2.69m x width 2.63m x height 9m.

A large 130 litre fuel tank and fuel efficient engine enables the TL-90 Tower Light to operate for an extended period of 85 hours on just one tank. Its wealth of safety features, including an emergency stop button, automatic engine shutdown (low oil pressure/high water temperature or thermal overload), mast deployment alarm and safety system (release park break and mast descends automatically), and easy access fuel fill with sight gauge, make it the ideal choice.

Please call us on +86-13922523585 or email Sam@etonepower.com and our specialist team would be delighted to advise you on the best lighting for your site.

Suitable for

  • Construction Sites
  • Highways Works
  • Railway Works
  • Airports
  • Entertainment Events
  • Security
  • Campsites
  • Car Parking

Specification

  • Lamps: 4x1000W Metal Halide
  • Mast Height : 9M
  • Fuel Consumption : 1.5L Per Hr
  • Running Time : 85Hrs
  • Tank Capacity : 130L
  • Units Per Lorry : 10
  • Winch Type : Hydraulic
  • Engine Make : Kubota
  • Noise Level : 82DBA
  • 20LUX Coverage : 4000Sqm
  • Mains Power : Yes *C.A.
  • Weight : 933kg
  • Power Output : 5KVA

Features

  • Super silenced operation
  • Mast fully extends in 12 seconds
  • Fork lift pockets / lift eye
  • 360° mast rotation
  • High intensity light
  • Emergency stop button
  • Auto shutdowns
  • Bio-degradable oil
  • Easy access fuel fill
  • Engine fluids fully bunded
  • 85 hours on single tank

Benefits

  • Compact and robust
  • Reduced noise pollution
  • Quick to operate
  • Fuel efficient
  • Environment protection
