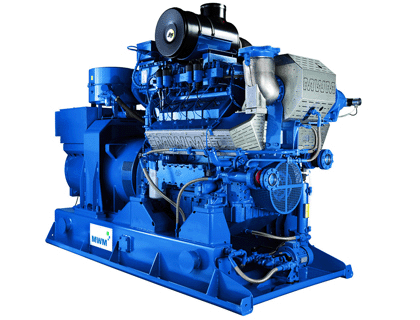

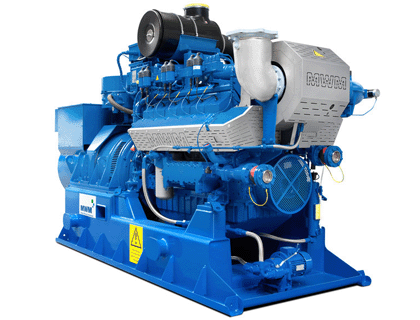

Gas engine TCG 2016 - Facts and Figures

● Output range from 400 to 800 kWe

● Runs on all gas types: natural gas, biogas, landfill gas, sewage gas, mine gas, etc.

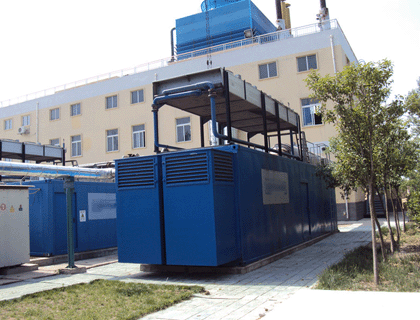

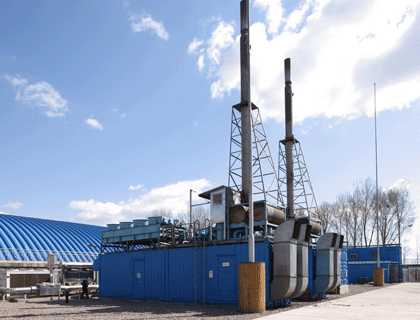

● Mainly used for biogas plants and small CHP plants in Europe

● Highest electrical efficiency in the output range up to 1,000 kWe

● More than 1900 power generators with approximately 1,000,000 kWe already installed around the globe

■ Low Operating Costs - Gas Engine TCG 2016

Consumes up to 15 Percent Less Gas than Comparable Gensets Thanks to Its Best-of-Class Efficiency

● Special piston variants with different compression for biogas and natural gas operation
● Optimized gas exchange and camshaft, spark plugs with integrated pre-combustion chamber
● Even load balancing over the individual cylinders enables higher load level and maximum utilization of the engine reserves in terms of output and efficiency
● New closed crankcase ventilation optimizes combustion and increases efficiency by utilizing the blow-by gas
● Consistent downsizing of dead spaces improves complete combustion of the gas mixture, resulting in reduced fuel consumption and HC and CO emissions and higher efficiency

Long Service Intervals

● Longest time interval until major overhaul compared to competitors
● Use of Xchange components enables time savings of up to 75 percent during the major overhaul, resulting in reduced costs
● Turbocharger for TCG 2016C series, depending on application with water-cooled bearing housing, thus reducing maintenance costs for turbocharger
● No contamination of the turbocharger compressor thanks to improved separation of gas and liquid phase, resulting in long maintenance intervals

Very Low Lubricant Consumption

● With its lubricant consumption of only 0.2 g/kWh, TCG 2016C sets competitive standards
● Lubricant savings of up to 50 percent compared to competitors

■ Lower Investment Costs - Gas Engine TCG 2016

Low Installation Costs Thanks to Smaller Dimensions

● Compact genset design saves investment costs through smaller engine space and fewer plant peripherals
● Setup space up to 50 percent smaller than for comparable gensets

■ High Flexibility - Gas Engine TCG 2016

TEM Control Enables Use of Diverse Gas Types

Natural gas applications, NOx ≤ 500 mg/Nm3*
Engine type		TCG 2016 V08 C		TCG 2016 V12 C		TCG 2016 V16 C
Engine type		50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
Electical output	KW	400	400	600	600	800	800
Thermal output ± 8%	KW	427	445	654	675	854	886
Electrical efficiency	%	42.3	41.4	42.0	41.3	42.5	41.6
Thermal efficiency	%	45.2	46.0	45.8	46.5	45.3	46.3

Biogas, landfill gas, and sewage gas applications, NOx ≤ 500 mg/Nm3*
Engine type		TCG 2016 V08 C		TCG 2016 V12 C		TCG 2016 V16 C
Engine type		50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
Electical output	KW	400	400	600	600	800	800
Thermal output ± 8%	KW	394	416	595	634	790	829
Electrical efficiency	%	42.8	41.6	42.7	41.4	42.8	41.7
Thermal efficiency	%	42.1	43.2	43.7	42.3	42.3	43.3

■ Specifications and service intervals TCG 2016

Service intervals
	First service (check valve clearance)	Cylinder head inspection	Major overhaul
Natural gas and purified biogas, landfill gas, and sewage gas	20000h	32000h	64000h
Unpurified biogas, landfill gas, and sewage gas	1500h	12000h	48000h
