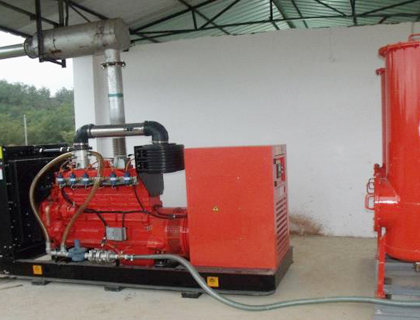

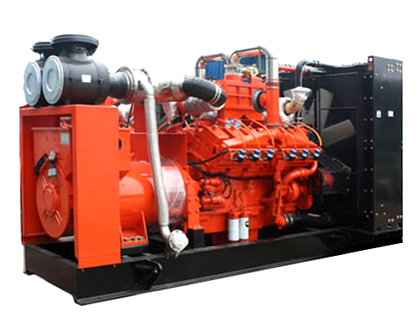

206kVA Cummins Natural Gas Generator Set

Gas Generator Set Features:

Gas requirement

• ● There should not contain liquid water or particulate matter(impurity ＜5um)
• ● Gas calorific value ≥5000kca1/1, genset power will reduce when calorific value ＜5000kca1/1.
• ● Sulfide content not more than 250mg/m3
• Gas should be desulfided when sulfide content surpass fixed content.
• (marks: Engine will be easy to be destroied when sulfide content goes too high.

■ Cummins Natural Gas Generator Set:

Engine

• ● Ruichang series natural gas generators are adopt the Cummins gas engine with Stamford brand alternator. And Cummins gas engine adopts the America ignition system and pottery rotate high power lead spark plug.
• ● The Ruichang Natural Gas Generator features advanced process, rational structure, reliable performance, low noise and vibration, easy to start as well as convenient in installation and maintenance. They are applicable for oil production, various pump stations, small power station as so on
• ● Requirements to Natural Gas:
  Thermal Value
  CH4≥ 41860 KJ/M3
  S ≥ 85%
  H2S ≤ 20MG/M3
  Gas Pressure: 80-200 Kpa .

Alternator

• ● Original Stamford & Marathon Alternator with brushless self-excited, AVR, H Class Insulation, IP23 Protection.

Control System

• ● Adopt the top brand Deepsea controller( DSE510, DSE5210, DSE5320, DSE5220 etc) and ComAP Controllers( MRS-10, MRS-16. MRS-15 etc) with manual, automatic & remotely operation for the users

Test & Commissioning

• ● Each generator has been got through 2 hous load test for running 0%, 25%, 50%, 75%, 100% and one hours overload testing

Standard Accessories:

• ● Standard radiator mounted on skid, common steel frame, circuit breaker, damper, exhaust pipe, battery, shock pad, operation manual, silencer, test report and certificate

Warranty

• ● All equipment is warranted for a period of 1000 hours or 12 months fro mthe date of commissioning.

Certificate: ISO9001: 2000, BS4999, BS5000, BS5514, CE, EPA, ISO4001: 2004

Package: Standard exporting Plywood Case

• Item	KVA		KW		Engine Model	Dimension
  	Prime	Standby	Prime	Standby		L*W*H(mm)	Weight(KG)
  ETG-C33N	30	33	24	28	HG4B	1850*750*1480	820
  ETG-C41N	38	41	30	36	HG4B	1850*750*1480	900
  ETG-C55N	50	55	40	50	HG6B	2250*820*1500	1050
  ETG-C68N	63	68.8	50	55	HG6B	2250*820*1500	1100
  ETG-C88N	80	88	64	70	HGN14	3010*1100*1800	1700
  ETG-C110N	100	110	80	88	HGN14	3010*1100*1800	1700
  ETG-C165N	150	165	120	132	HGN14	3150*1100*1800	2800
  ETG-C303N	275	303	220	242	HGK19	3470*1230*2300	3380
  ETG-C688N	625	688	500	550	HGK38	4400*1850*2410	6080
  ETG-C1375N	1250	1375	1000	1100	HGS63	5700*2100*2750	14500
  ETG-P380N	345	380	276	304	4006-23TRS1	4160*1652*2206	5300
  ETG-P495N	450	495	360	396	4006-23TRS2	4160*1652*2206	5400
  ETG-P550N	500	550	400	440	4008-30TRS1	4681*1652*2207	6150
  ETG-P688N	625	688	500	550	4008-30TRS2	4681*1652*2207	6220
  ETG-P825N	750	825	600	660	4012-TES1	4900*2000*2230	8700
  ETG-P1375N	1250	1375	1000	1100	4016-TRS1	5700*2060*2630	13000
  ETG-M1375N	1250	1375	1000	1100	16V165RQ	5700*2100*2750	13000
  ETG-J35N	30	35	24	28	F4100DT	2000*730*1320	620
  ETG-J44N	38	44	30	35	F4105DT	2100*730*1320	710
  ETG-J60N	50	60	40	48	F6105DT	2440*730*1390	810
  ETG-J66N	63	66	50	53	H4135DT	2220*900*1310	2120
  ETG-J104N	88	104	70	83	H6135DT	2600*1010*1430	2410
  ETG-J138N	113	138	90	110	N6135DT	2550*1010*1470	2530
  ETG-J163N	150	163	120	130	W6140DT	2750*1010*1470	2600
  ETG-J225N	200	225	160	180	W12V135DT	3058*1325*1820	3200
  ETG-J275N	250	275	200	220	W12V138DT	3058*1325*1820	3300
  ETG-J563N	500	563	400	450	12V190DT2_2	6470*2110*2195	11800
  ETG-J688N	625	688	500	550	12V190ZDT_2	4566*2040*2780	11800
  ETG-J750N	625	750	500	600	G12V190ZLT-2	4566*2040*2678	12000
  ETG-J750N	625	750	500	600	G12V190ZLDT-2	4566*2040*2678	11300
  ETG-J1000N	875	1000	700	800	G12V190ZLDT-1	5120*2040*2678	12000
  ETG-J1000N	875	1000	700	800	G12V190ZLDT	5120*2040*2678	11800
  ETG-J1375N	1250	1375	1000	1100	AD12V190ZLT2	5735*2312*2776	11800
  ETG-J1650N	1500	1650	1200	1320	H16V190ZT	5735*2312*2776	18500

  tuation rate：≤0.5%
