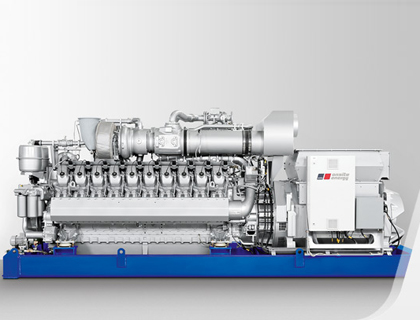

MTU Electrical power range: 700 - 2145 kWMTU Electrical power range: 700 - 2145 kW

MTU Electrical power range: 700 - 2145 kW

  • Product Brand:
  • Product Model:
  • Product Description:
● Proven mechanical components

● Very high power density

● Cylinder-selective knock control

● Sophisticated compact design

● Factory tested with comprehensive performance evaluation

● Single cylinder heads with four-valve technology

■ NATURAL GAS

Economical. Reliable. Sustainable.

  • MTU Onsite Energy's natural gas generator sets are cutting-edge technology that offer combined heat and power (CHP) and combined heat, power and cooling (CHPC) solutions to generate power.
  • Our products combine the highest performance with the lowest emissions in the 120 kW - 2.145 kW electrical power range.
  • Therefore, our natural gas powered CHP systems represent the ideal solution for multiple applications:
  • ● Public buildings and residential utilities
  • ● Industrial & Manufacturing
  • ● Mission critical applications

50HZ : 700 - 2145 KWEL
MTU Onsite Energy Type
CHP Type
Output
Electr.(KW / el)
Therm.(KW / th)
Low Temp.(KW / th)
L33(highest ou)
GC 854 NS
AE 8V 4000 L33
854
891
49(40)
GC 1286 NS
AE 12V 4000 L33
1286
1232
88(40)
GC 1718 NS
AE 16V 4000 L33
1718
1795
113(40)
GC 2145NS
AE 20V 4000 L33
2145
2286
142(40)
All data according to full load, indicated gas mixture cooler water inlet temperature and are subject to change

60HZ : 760 -1950 KWEL
MTU Onsite Energy Type
CHP Type
Output
Electr.(KW / el)
Therm.(KW / th)
Low Temp.(KW / th)
GR 763 NS
AE 8V 4000 L62
763
919
46(40)
GR 1149 NS
AE 12V 4000 L62
1149
1381
77(40)
GR 1548 NS
AE 16V 4000 L62
1548
1822
101(40)
GR 1941 NS
AE 20V 4000 L62
1941
2283
125(40)
