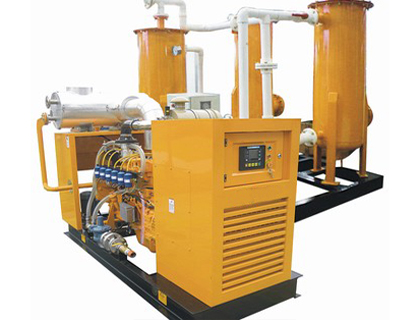

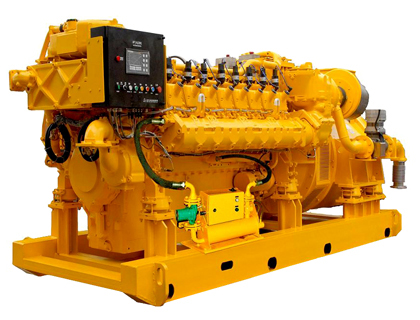

Etone Gas Generator Set Series (20KW-1340KW)

Gas Generator Set Features:

Gas requirement

• ● There should not contain liquid water or particulate matter(impurity ＜5um)
• ● Gas calorific value ≥5000kca1/1, genset power will reduce when calorific value ＜5000kca1/1.
• ● Sulfide content not more than 250mg/m3
• Gas should be desulfided when sulfide content surpass fixed content.
• (marks: Engine will be easy to be destroied when sulfide content goes too high.

■ Gas generator set features:

• ● Electronic air/gas mixer, which can supply best air fuel ratio to improve working efficiency and reduce Nox emision. Special regulation system is used to gas of mathane content above 30%
• ● Ignition system: high-precision Altronic ignition system imported from US prolongs engine's working life and improve the stability
• ● Long overhual period:18000-25000 hours
• ● Automatic smart control system, easy to handle. Duing the working time, genset processing automatic troubles testing.
• ● Genset is approved by CE,ISO9001,2008,14001,2004,2007 and OHSAS18001.

The Electrical Performance of Diesel Generator Sets

• ● Power factor:0.8(lagging)
• ● Connection way: three phase four lines
• ● Ambient temperature:-40℃～52℃
• ● Steady voltage regulation rate:±1%; transient voltage regulation rate：+20～-15%
• ● Steady frequency regulation rate:±1%; transient frequency regulation rate：+10～--7%
• ● Voltage fluctuation rate：≤0.5%
• ● Frequency fluc

  Item	KVA		KW		Engine Model	Dimension
  	Prime	Standby	Prime	Standby		L*W*H(mm)	Weight(KG)
  ETG-C33N	30	33	24	28	HG4B	1850*750*1480	820
  ETG-C41N	38	41	30	36	HG4B	1850*750*1480	900
  ETG-C55N	50	55	40	50	HG6B	2250*820*1500	1050
  ETG-C68N	63	68.8	50	55	HG6B	2250*820*1500	1100
  ETG-C88N	80	88	64	70	HGN14	3010*1100*1800	1700
  ETG-C110N	100	110	80	88	HGN14	3010*1100*1800	1700
  ETG-C165N	150	165	120	132	HGN14	3150*1100*1800	2800
  ETG-C303N	275	303	220	242	HGK19	3470*1230*2300	3380
  ETG-C688N	625	688	500	550	HGK38	4400*1850*2410	6080
  ETG-C1375N	1250	1375	1000	1100	HGS63	5700*2100*2750	14500
  ETG-P380N	345	380	276	304	4006-23TRS1	4160*1652*2206	5300
  ETG-P495N	450	495	360	396	4006-23TRS2	4160*1652*2206	5400
  ETG-P550N	500	550	400	440	4008-30TRS1	4681*1652*2207	6150
  ETG-P688N	625	688	500	550	4008-30TRS2	4681*1652*2207	6220
  ETG-P825N	750	825	600	660	4012-TES1	4900*2000*2230	8700
  ETG-P1375N	1250	1375	1000	1100	4016-TRS1	5700*2060*2630	13000
  ETG-M1375N	1250	1375	1000	1100	16V165RQ	5700*2100*2750	13000
  ETG-J35N	30	35	24	28	F4100DT	2000*730*1320	620
  ETG-J44N	38	44	30	35	F4105DT	2100*730*1320	710
  ETG-J60N	50	60	40	48	F6105DT	2440*730*1390	810
  ETG-J66N	63	66	50	53	H4135DT	2220*900*1310	2120
  ETG-J104N	88	104	70	83	H6135DT	2600*1010*1430	2410
  ETG-J138N	113	138	90	110	N6135DT	2550*1010*1470	2530
  ETG-J163N	150	163	120	130	W6140DT	2750*1010*1470	2600
  ETG-J225N	200	225	160	180	W12V135DT	3058*1325*1820	3200
  ETG-J275N	250	275	200	220	W12V138DT	3058*1325*1820	3300
  ETG-J563N	500	563	400	450	12V190DT2_2	6470*2110*2195	11800
  ETG-J688N	625	688	500	550	12V190ZDT_2	4566*2040*2780	11800
  ETG-J750N	625	750	500	600	G12V190ZLT-2	4566*2040*2678	12000
  ETG-J750N	625	750	500	600	G12V190ZLDT-2	4566*2040*2678	11300
  ETG-J1000N	875	1000	700	800	G12V190ZLDT-1	5120*2040*2678	12000
  ETG-J1000N	875	1000	700	800	G12V190ZLDT	5120*2040*2678	11800
  ETG-J1375N	1250	1375	1000	1100	AD12V190ZLT2	5735*2312*2776	11800
  ETG-J1650N	1500	1650	1200	1320	H16V190ZT	5735*2312*2776	18500

  tuation rate：≤0.5%
