Light Tower(7kVA-15kVA)Light Tower(7kVA-15kVA)Light Tower(7kVA-15kVA)

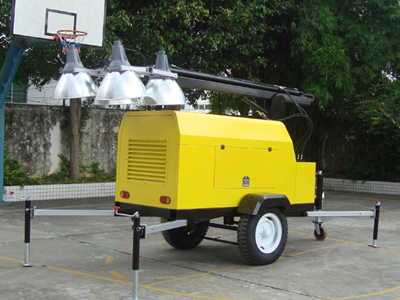

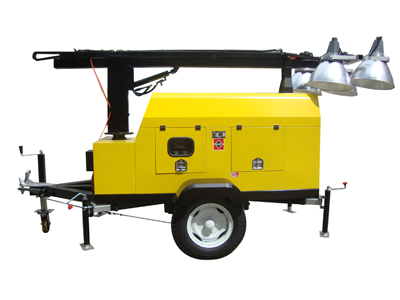

Light Tower(7kVA-15kVA)

  • Product Brand:
  • Product Model:
  • Product Description:

We are the expert of power supply and its engineering solution.
Applicable place:
Suitable for all kinds of indoor and outdoor worksite. Such as coal industry, petroleum and chemical industry, electric power, metallurgy, railway, iron and steel, shipping, army, aviation, police and fire-fighting, government and large-scale factory's fixed lighting need.
Function:
1. Illumination performance: The lamp panel is composed of 4 high effective and energy-saving lamp caps. Its power is 1000W. The illumination brightness is high and the scope is wide. Service life of light source is over 10000 hours. Especially it is appropriate for outside illumination.
2. Fluctuation performance: Light tower is made of high intensity alloy. It can adjust the height through telecontrol. The height maximum is 6m. 4 lamp caps can turn around achieve the entire job-site lighting.
3. Working time: High-performance power generating units. It can work 9 hours continuously after generating units over one-off injection petrol. If in the situation of power supply220V AC power supply can be connected light tower to realize long time lighting.
4. Convenient operation: Two ways control lifting level to lifting and fallthey are remote or switchthe operation is simplesafe and reliablewireless remote control mode can work in the scope of 30 meters.
5. Applicable places: Light tower is made of high intensity alloy and has stable performance. It can work normally in various harsh environments. Wind resistance rating is class 8.
6. Easy maneuverability: Optimize the structural designmobile handling convenience connect to the trailer can be easily moved to any constructionrescue scene

Please call us on +86-13922523585 or email Sam@etonepower.com and our specialist team would be delighted to advise you on the best lighting for your site.

Voltage
120.220.230.240V
Ferquency
50Hz/60Hz
Lamp
Type
Metal Halide Lamp
   Watt x Number
1000W×4/1000W×6
   Total Luminous Flux
440000lm
   Light Coverage  5 to7Acres
Mast
   Number of Stage 3
   Type Manual/Electric Hydraulic
Dimension(L×W×H)
   Working  4400*1480*1930 to 9000mm
   Storage 3500*1360*1600mm
Weight 870kg-1050kg
GENERATOR
Model NPP403D-11G
Ferquency 50Hz 1500rmp/60Hz 1800rmp
Phase Single Phase
Output(Rated Power) 50Hz 8Kva / 60Hz 10Kva
StartSystem Electric
Fuel Tank Capacity  135L
Working Hours  8
Control System  Digital Control Panel
Optional
Generator Brand(Yanmar,Kubota,Perkins or else)
The Lamp of The Wattage(500W)
