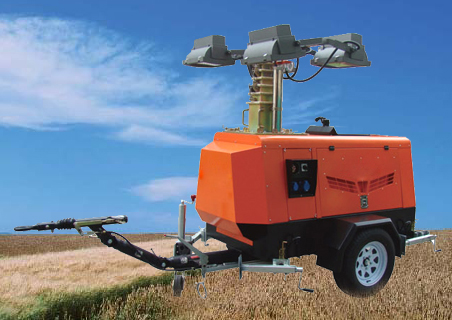

VL Manual Type Features:
5-sections telescopic mast can be extended manually.
VL Electrical Type Features
VL Series Dimension
The safe and reliable 5-sections telescopic mast powered by the DC electrical linear actuator can be extended to 7.2 meters altitude fully；
The linear actuator is able to work in colder climate. The self-locking ball screw can keep the altitude at any position for a long time.
The features of electric and manual types:
The light bar can be extended to 7 meters altitude fully, and its shooting angle can be manually adjusted at the lowest position easily;
The trunk with air-springs is easy for maintenance;
The AL-KO Hexagon rubber suspension system is suitable for variously rough road, and its maintenance-free axis’s service life will be at least 20 years;
The electrical devices of the lights are fitted in the trunk, and it’s easy to fix. The most cable can be retracted in the protective stainless steel tube;
The galvanized mast and the powder coated canopy suit the outdoor environment for a long time;
Three manual legs of individual operation are able to support stably and reliably even on rough ground, so the lighting tower can also work in the 8 grade windy weather;
The lights are IP65 or IP66 protective class.
Please call us on +86-13922523585 or email Sam@etonepower.com and our specialist team would be delighted to advise you on the best lighting for your site.
Standard Equipment
4VL1600
Length (mm)
2180（1160，Detached the tow bar）
Width (mm)
1050
Height (mm)
2460(2250,Detached the lights)
Mast Height(m,Fully Extended)
7
Weight (gross)
280kg
Engine model
178F (CHANGCHAI)
Frequency(Hz)
50
60
Speed(rpm)
3000
3600
Continued Power(kVA)
2.7
3.2
Number of Cylinders
1
Diesel Engine Characters
4-Cycle, In line, Aircooled diesel
Combustion Type
Direct injection
Engine Aspiration
Natural
Emission Level
N.A.
Tier4
Rating Voltage (V)
230
Alternator Insulation
class H
Fuel Tank Capacity
38 liters (10 US Gallons)
Fuel Tank Operating Hours
60 hours
Type of Lights
GEWISS Metal Halide Floodlight
Number & Power of Lights
4×400W
Mast Extension
Manual operation
Number of Mast Sections
5
Light Tilt
Manual operation
Stabilizing Legs
Manual operation
Trailer Suspension System
Hexagonal rubber suspension
Hitch
Ball or O ring
Tire Rim Size
13”
Output Sockets
1 PCS (230V,10A)
Input Sockets & MTS
1 set (230V,16A)
Acoustic Pressure
75dB(A) at 7 meters away
Max. load quantity in
a 20' container (sets)
10
